Mobile Home Bathroom Guide

Mobile home bathroom remodels can be difficult. There are several different types of faucets, sinks, counters, toilets, and bathtubs. The choices are endless!

Do you need a pedestal sink or a floating sink? Should you buy a center set faucet or a wall mounted? Do you need to special order your bathtub?

We’ve produced this mobile home bathroom guide to help you answer the most common questions and make the best buying decisions for your home and your family.

Remodeling Cost and Value for a Standard Bathroom Remodel

A bathroom remodel isn’t cheap but they have a great return on investment. For every dollar you spend on the remodel you can expect to get around 70% back when you sell the home. In 2014, the average bathroom remodel (in a site-built home) cost $16,128 with a resale value of $11,688. That’s a good investment since you get to enjoy the new bathroom, too!

Click to see: The Glossary of the National Kitchen and Bath Association here.

Standard Mobile Home Bathtubs

There are a few different standard bathtubs for mobile homes: alcove, corner, oval, and whirlpool. In addition, there are several modern choices in unique shapes options. We’ll go over each one.

The National Kitchen and Bath Association states that the average bathtub size in the US is 60″ x 30/32″ but that’s not the case with mobile and manufactured homes.

Alcove Tubs

Mobile home bathrooms with alcove bathtubs are a bit different from your standard site-built home alcove tubs. The standard tub in your mobile home is probably around 6″ smaller, both width and length wise.

You have 2 options to combat the size difference if you want a standard bathtub: buy a bathtub specifically made for mobile homes or buy builder-grade acrylic tubs from a regular bathroom supply company and retrofit their products to fit.

If you choose to buy from a mobile home supply store you will pay a bit more but the process of removing and replacing the tub will be a lot easier.

Mobile home bathtubs are usually 54″ x 27″ and a bathtub at your local home improvement store is 60″ x  32″.

It’s hard to find an additional 6 inches in an already small bathroom so buying a mobile home sized tub is probably easiest.

Corner Tubs

Corner tubs were very popular in mobile homes. They’ve been found in homes from the 1970’s to the 2010’s. Most of them are 54″ x 54″and run between $700-750 to replace.

Site-built homes have corner tubs that are usually 60″ x 60″. That 6″ difference strikes again!

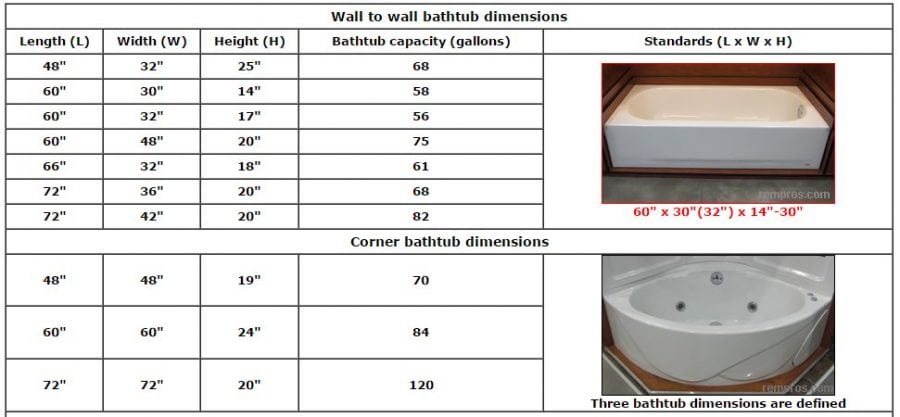

Mobile home bathroom - standard bathtub deminsions Source: Rempros

Oval Tubs

Believe it or not, the standard mobile home bathroom with an oval tub is bigger than the average site-built home oval tub! Mobile Home Supply Store has two oval tubs, 64″ x 42″ and 64″ x 44″. Per About, the average size for a oval tub in a site-built home is 60″ x 41″. Score one for factory-built homes!

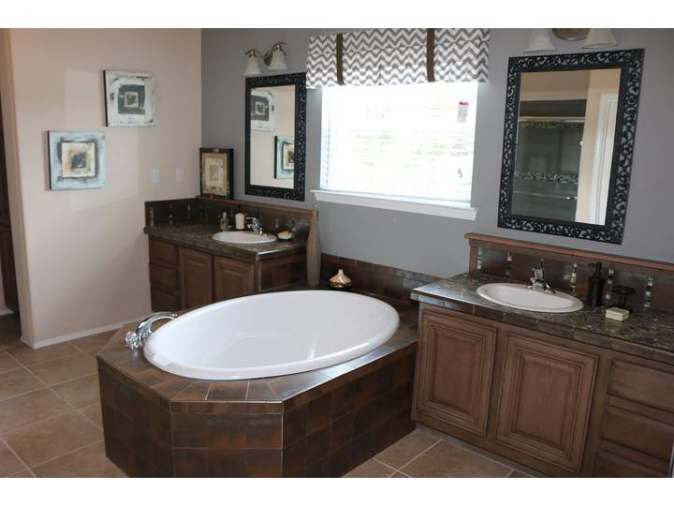

oval tub in manufactured home bathroom - Casa Grande (12)

Palm Harbour’s Casa Grande Model has an oval tub.

Modern and Upscale Bathtub Choices

If you are completely gutting your bathroom you can choose whatever tub you want in whatever size or shape you want. That’s one of the best perks of a total gut remodel.

Whirlpool Tubs

If you have a bad back or neck or just enjoy water jets a whirlpool is a perfect choice for you. These tubs have powerful water jets in the sides and bottom of the tub. They are complicated to install and have high maintenance needs. You will need have the proper electricity wiring available wherever you plan to place the tub. Luckily, whirlpool tubs are available in several sizes and shapes so you’ll find one that suits your space.

Clawfoot Tubs

One of the first bathtub designs was made with cast iron and had 4 awesome claw feet. The ‘feet were usually made to look like an eagle claw holding a ball. They have always been, and will likely alway be, a very popular bathtub design.

Cloud Tubs

A popular new tub shape is the cloud tub. They are freestanding and look great in both small and large bathrooms.

cloud tub by W2 -mobile home bathroom guide

Wetstyle has several gorgeous small bathroom bathtub designs. Shapes include the above ‘cloud’ along with straight sided tubs and wave tubs. Here’s their popular wave tub design along with modern cabinetry:

W2 small mobile home bathroom remodels - modern tub ans cabinetry design


BathTub Materials

Once you pick your tub shape you will need to put some thought into the tub’s material. There are 4 popular materials: acrylic, fiberglass, enamel-coated cast iron, porcelain-enamel steel. Each has pros and cons. Here’s a screenshot from Home Depot explaining how the materials are used to make a bathtub along with their pros and cons:

bathtub material

Yellowing of Mobile Home Bathtubs

Factory supplied mobile home tubs are prone to turning yellow after a few short years. It is typically caused by poor UV coating. Many homeowners have had to spend to spend hundreds of dollars to replace a bathtub shortly after the warranty expires so please make sure the bathtub you choose has sufficient UV protection and cannot turn yellow after a couple of years.

Mobile Home Bathroom Faucets

Bathtubs choices are complicated but faucet choices are maddening!

Faucets come in 5 varieties: centerset, mini-spread, single hole, wall-mount or widespread.

Single Hole Faucets

Single Hole Faucets only require a single hole to be drilled on the counter. They usually come with one or two handles attached to the main spout. These can be tricky to operate for the very young or the elder as getting the right temperature is only controlled by one handle usually. You can buy them with temperature limiting valves to prevent scolding. If you are transforming from a center set to a single hole faucet, deck plates are available and often come with the faucet. This allows the modification to remain stylish and covers up the additional holes that are no longer needed.

Centerset Faucets

Center Set Faucets are the most often used style in mobile homes.  The holes are drilled 4″ apart from the center of the holes. The water temperature is controlled completely through the handles as there are 2 lines, one for hot and one for cold and they are mixed together in the spout. They come in either 2 handle or 1 lever designs that are attached to the base. Their compact size is beneficial for small spaces.

4″ Minispread Faucets

4″ Minispread Faucets are also classified as center set yet are a bit different. The have 3 separate pieces which give the look of a widespread faucet but you can still use the standard 4″ openings of a center set faucet. Each handle controls either the hot or the cold water. It’s mixed together in the spout.

Wall-Mounted Faucets

Wall-Mounted Faucets are exactly what they say they are: wall mounted. These are becoming increasingly popular for small spaces because they don’t require additional counter room for the faucet. They are perfect for the modern vessel sink. Make sure to chose one that is the right length for the sink you want. It should extend to the exact middle of the sink upon installation.

Widespread Faucets

Widespread Faucets come in either 8″ or even 16″ wide styles. The valves and temperature mixing chamber are below the counter. They are usually very large and should be used in the correct environment, with a large sink. Otherwise, the scale will be off and it will overpower everything in the room.

The Right Faucet

You can put any kind of faucet you want in your home, especially if you are changing out the counter and sink at the same time. If you are simply replacing a leaky faucet you should buy the style that fits the opening you have (most often its going to be 4″ center set in a mobile home). You can get a replacement faucet from a mobile home supply store for cheap or you can spend a bit more on a piece that really makes a statement in the room.

If you are completely remodeling the bathroom, your options are wide open!

Most recommend that you buy the faucet first, then the sink based on the type of faucet you’ve selected. You’ll also want to choose a counter. All new faucets should come with a template to help you place the holes in the correct spot.

Mobile Home Bathroom Sinks

There’s several types of sinks, too. Mobile home bathroom remodels are more complicated than most people think!

There are 6 basic sink types: vanity top, console, vessel, pedestal, wall mounted, under-counter and countertop.

Vanity Top Sinks

Vanity Top Sinks are a one piece sink and counter combination. They are simply installed on top of a cabinet or as part of a complete furniture piece. They come in several different types of materials and sizes.  Easy cleaning is one advantage but size and weight can be disadvantages.

Console Sinks

Console Sinks are similar to vanity top sinks but they are often supported by 2 front legs in the front and wall mounting in the back. They are great for small spaces but there’s little to no storage space under the sink. They come in various materials and sizes. They are easy to clean since it’s one piece with legs.

Vessel Sinks

Vessel Sinks are very popular these days. It’s basically a decorative bowl that sits either on top of the counter or inside the counter, though the top installation is far more popular. Numerous materials are available although glass seems to be the most popular. You must chose the correct faucet for vessel sinks.

vessel sink

Pedestal Sinks

Pedestal Sinks are free standing sinks with a base. You often have to buy the 2 pieces separately but that gives you an opportunity to get the exact style you want. There’s no storage under these but they are beautiful and simple. Plumbing is often exposed.

Wall Mounted Sinks

Wall Mounted Sinks are self explanatory. The are attached to the wall and nothing else. They are often small in size and perfect for tight spaces.

Under Counter Sinks

Under counter sinks are set under the counter. This allows the inside of the counter to be seen around the opening of the sink so it should be decorative or one solid piece such as granite. They are installed under the counter with mounting kits. These are very popular as well and are often referred to as under mount sinks. They come in numerous materials, shapes and sizes.

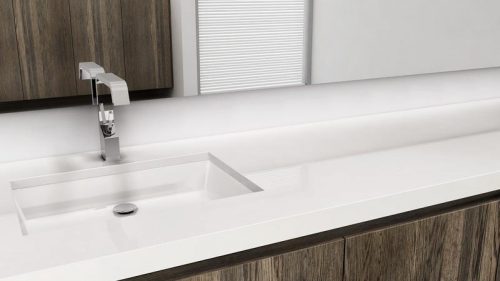

undermount sink

Countertop Sinks

Counter top sinks are the most popular style of any sink. The rim of the sink rests directly on top of the counter inside of a hole. The countertop material can be practically anything as long as it’s waterproof. Materials choices are numerous and they come in several sizes and shapes.

Most mobile home bathroom sinks are set with clips placed under the sink opening. The parameter is sealed under the lip of the sink. Unscrew the clips and run a blade between the sink and counter and lift it out. Then replace them with whatever style you want!

Try to get a replacement product that has a warranty and a good company reputation. Kohler Bathroom sinks are known to be good quality with a lot of styles to chose.


Mobile Home Toilets

I can’t really say much about toilets in mobile homes. They’ve seem to stand up very well. Of course, the guts needs replaced occasionally but that’s the case with any toilet.

Mobile home toilets are easily replaceable with any one on the market. You have 2 basic choices; a regular toilet or a handicapped one. The handicapped toilets are higher and may be helpful if someone has mobility issues in the home. All toilets you buy today are going to be low flow which is good, we don’t need to use 10 gallons every time we flush.

Replacing toilets is not complicated: turn the water off, empty the water out of the tank and bowl. Unscrew and lift. Anytime you move or replace a toilet you must use a new wax ring. It’s just not smart to reuse them (yuck!). There’a little more to it but the magic is in making sure it’s level. If it’s not level, you are going to have complications. Leveling brings me to the last section, bathroom floors.

Related: Mobile Home Parts Store has a one page instructional sheet on how to replace a mobile home toilet here.


Mobile Home Bathroom Floors

I believe flooring is the most important part of a mobile home bathroom remodel.

Every drop of water that is allowed to reach the flooring (meaning the sub-floor and joists under the floor covering as well as the insulation) can get damaged. It can rot and cause weak spots and swelling. Chances are within 15 years of buying your home you will need to replace the bathroom floors completely if the appropriate precautions aren’t taken.

In the 80’s, some manufacturers had the bright idea to put carpeting in the master bathrooms. What a mess! If you have carpet in your bathroom or floating floor without a waterproof membrane under it, get it out. The mold growing under it is not healthy and I will guarantee that it’s there, you may just not realize it.

In the 34 years that I have proudly lived in a manufactured home, I’ve been involved with no less than 5 total bathroom floor replacements. It’s not easy.

Using a waterproof membrane will help keep the bathroom dry and allow you some peace of mind that you won’t have to do it all again.

Designing Your New Mobile Home Bathroom

Whether you have a lot of space or just a little, you need to utilize every inch. Here are some commonly used layouts in smaller bathrooms.

If you are completely gutting your bathroom and love the modern look this is a great design.

small mobile home bathroom remodels - small bathroom floor plan

W2_Wave_Element bathtub design for mobile home remodels


You can see more great bathroom remodeling ideas on Wetstyle’s Pinterest.



If you’re ready to do a complete bathroom renovation in your mobile home, begin from the bottom and work your way up. There’s no sense in buying all the fancy new fixtures if the flooring isn’t protected. Factoring in sub-flooring and giving the joists a good inspection before you install anything is the smartest move you can make. Learn more about great bathroom design for small spaces here.

Alright, that should get you started on planning your bathroom remodel. Good luck!

As always, thank you for reading Mobile & Manufactured Home Living!

This is a sponsored conversation written by me on behalf of WETSTYLE.  The opinions and text are all mine.
